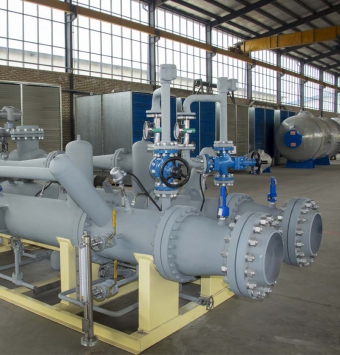

Vacuum system or multi stage ejector vacuum system is supplementary equipment in steam processing plants which helps to improve the performance of the whole system by providing continuous low pressure in a medium.

Vacuum systems

Vacuum system is supplementary equipment in steam processing plants which helps to improve the performance of the whole system by providing continuous low pressure in a medium. the vacuum system contains multi .stage ejector  to create vacuum system

Specially meant for power generation plants these packages, which are consistent of non-rotating equipment such as; Ejectors, Heat exchangers, Condensers, and monitoring apparatus, are distinguished as reliable operating under steady state continuous working conditions.

KARAJETvacuum systems are designed in separate stages which number is defined according to the capacity desired. In each stage, the steam passing through the ejectors provide vacuum pressure in the suction connection that is to be transferred to the condensers. The condenser will dissipate the heat to the medium in the tube side of the heat exchangers, and then it is discharged to downstream. The remaining steam in the condensers is guided to the next stage (by the ejectors) in which is to be condensed, while  the mixing air is meant to be vented to atmosphere.

Do you want to know more about vacuum systems? take a look at our catalog and see more here :

KARAJET VACUUM SYSTEMS CATALOG





Regarding the process performed, it is obvious that; the operation of the vacuum packages is most desired when a medium is to be single liquid phased while cooled simultaneously, which as an example can be found in steam power generation plants

(stage systems(down to 10 mmHg
Vacuum distillation, evaporation and crystallization for chemical products
Steam condensers
(stage systems(down to 2 mmHg
Steam jet chillers
Stripping and deodorizing edible oils
Vacuum packaging
(stage systems(down to 0.2 mmHg
Freeze drying or dehydrating in food and pharmaceutical
industr
(stage systems(down to 0.04 mmHg
Steel degassing
Electronic and high-tech applications


Types:
Multi-stage vacuum pumps with direct contact condensers
Multi-stage vacuum pumps with surface type condensers
Hybrid systems

Advantages:
Simple construction
non-rotating parts
Energy saving
Wide range of condensers used
Long life span
Custom design
Low maintenance
High reliability
